Lightning Protection and SPD Coordination: Best Practices for Solar, BESS, and Industrial Facilities

Direct lightning strikes and transient switching surges pose constant threats to critical power infrastructure. As utility-scale solar PV plants, battery energy storage systems (BESS), EV fast-charging hubs, and automated industrial facilities proliferate, the financial impact of equipment downtime and component failure has risen exponentially. Implementing an effective external lightning protection system (LPS) is only half the battle; ensuring comprehensive lightning protection and SPD coordination across all low-voltage AC and DC distribution networks is essential to maintain operational continuity.

Without proper energy coordination between upstream and downstream surge protection devices (SPDs), high-energy transient spikes can easily bypass primary defenses, destroying sensitive microcontrollers, inverters, and communication buses. This guide explores the engineering principles of SPD coordination under IEC 61643 standards, system-specific deployment strategies, and environmental adaptation tips for high-risk regions across Southeast Asia and the Middle East.

---

What Is SPD Coordination and Why Is It Critical?

Surge protection is rarely achieved with a single device. A complete lightning and surge protection strategy relies on a cascaded, multi-stage architecture where multiple SPDs work in tandem across different zones of an electrical installation—from the main service entrance down to sensitive terminal loads.

SPD coordination refers to the intentional selection and spatial arrangement of primary, secondary, and tertiary SPDs so that each device handles its designated surge energy without triggering premature failure or letting excessive residual voltage ($U_p$) reach protected equipment.

The Mechanics of Cascaded Protection

Under IEC 62305 (Lightning Protection) and IEC 61643 standards, protection is structured into Lightning Protection Zones (LPZ):

• LPZ 0 to LPZ 1 (Main Entrance): High-energy direct lightning currents ($10/350\ \mu\text{s}$ waveform) enter the facility. Here, Type 1 SPDs (or Type 1+2 combination units) absorb and divert the bulk impulse current ($I_{imp}$).
• LPZ 1 to LPZ 2 (Sub-Distribution Panels): Indirect lightning surges and internal switching transients ($8/20\ \mu\text{s}$ waveform) propagate downstream. Type 2 SPDs clamp the remaining transient voltages to safe operating thresholds.
• LPZ 2 to LPZ 3 (Terminal Equipment): Sensitive electronics, DC control boards, and communications modules are safeguarded by Type 3 SPDs situated close to the load.

Without precise lightning protection and SPD coordination, a downstream Type 2 or Type 3 device with a lower voltage clamping threshold might trigger before the main upstream Type 1 SPD discharges. Because lower-tier SPDs have smaller energy ratings, this mismatch can cause immediate thermal destruction of the downstream device during a direct strike.

---

Core Principles of Lightning Protection and SPD Coordination

Achieving seamless coordination requires balancing three primary electrical parameters across your network:

1. Energy Coordination Rules

To ensure the upstream Type 1 SPD ignites before the downstream Type 2 SPD reaches its maximum thermal limit, the energy characteristics of both devices must be matched. This is typically achieved through:

• Decoupling Distance: Placing a minimum cable length (typically 10 meters of copper conductor) between upstream and downstream SPDs. The natural inductance of the cable creates a voltage drop during fast rise-time transients ($di/dt$), forcing the upstream Type 1 device to ignite first.
• Decoupling Inductors: When physical distance is restricted (such as inside compact switchgear or BESS containers), dedicated decoupling inductors ($L$) are installed in series between stages.

2. Voltage Protection Level ($U_p$) vs. Equipment Voltage Withstand ($U_w$)

The effective voltage protection level ($U_p$) provided by the SPD combination must always remain comfortably below the impulse withstand voltage ($U_w$) of the terminal equipment (defined under IEC 60664-1):

$$

U_p(\text{effective}) < 0.8 \times U_w

$$

Accounting for inductive voltage drops across connection leads, engineers must keep total lead length under 0.5 meters to prevent voltage amplification.

3. Continuous Operating Voltage ($U_c$) Selection

For both AC networks and high-voltage DC arrays (up to 1500V DC in modern PV and BESS applications), the maximum continuous operating voltage ($U_c$) must account for grid fluctuations and open-circuit PV array voltages ($U_{oc\text{ max}}$) to prevent false triggering or accelerated aging of metal oxide varistors (MOVs).

---

System-Specific Coordination Strategies

1. Solar PV and Battery Energy Storage Systems (BESS)

Solar installations feature long DC string exposures highly vulnerable to direct strikes and induced lightning surges.

• DC Side Protection: Install DC Type 1+2 SPDs (compliant with IEC 61643-31) at the central inverter DC inputs or string combiner boxes located within LPZ 1 boundaries. Use Type 2 DC SPDs at distant string level inputs.
• BESS Containers: Battery racks require localized DC protection to protect battery management systems (BMS). Energy coordination between the main DC busbar protection and rack-level modules prevents transient degradation of sensitive lithium-ion monitoring circuits.

2. EV Fast-Charging Infrastructure

DC Fast Chargers (DCFC) link high-power AC utility feeds with sensitive DC power conversion modules and Ethernet/CAN-bus communication channels.

• AC Input: Type 1+2 AC SPD at the site main distribution board, coordinated with a Type 2 AC SPD inside the charger cabinet.
• DC Output & Data: Fast-acting DC SPDs on the charging cable output, combined with signal-line SPDs (IEC 61643-21) on RS485 or Ethernet communication networks to safeguard billing and control electronics.

3. Commercial & Industrial Facilities

For heavy industrial plants, large motor switching creates frequent switching surges ($8/20\ \mu\text{s}$) alongside external lightning risks. Main distribution panels require high-capacity Type 1 SPDs ($I_{imp} \ge 25\text{ kA}$ per phase), coordinated with modular Type 2 SPDs at sub-panels feeding automated production lines and access control networks.

---

Navigating Environmental Challenges: Middle East & Southeast Asia

Deployment environments dictate component durability. Standard off-the-shelf SPDs often fail prematurely under extreme climatic stress.

Middle East: Extreme Heat and Thermal Stress

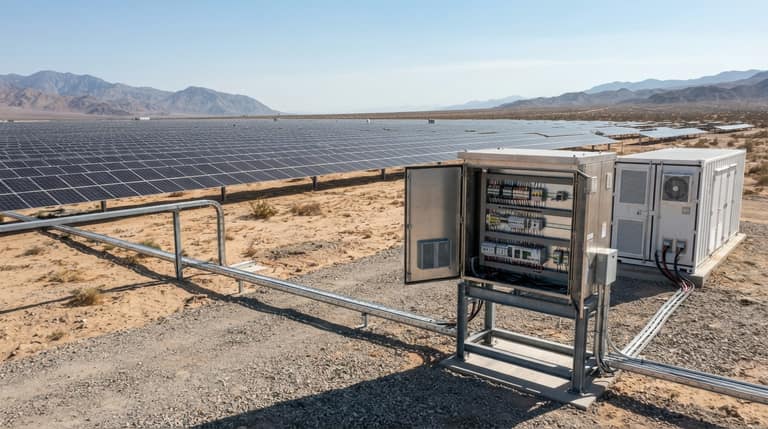

In desert installations across the GCC region, ambient temperatures inside outdoor electrical enclosures can exceed 60°C to 70°C. Heavy sand accumulation can also block enclosure ventilation.

• Thermal Runaway Risk: High ambient temperatures accelerate MOV degradation, increasing leakage current.
• Engineering Solution: Select SPDs featuring internal thermal disconnections with high thermal capacity, flame-retardant thermoplastic housing, and elevated continuous operating margins ($U_c$).

Southeast Asia: High Keraunic Levels and Tropical Humidity

Southeast Asia suffers from some of the highest ground flash densities (keraunic levels) in the world, alongside relative humidity exceeding 90%.

• Moisture & Corrosion: Tropical moisture ingress can cause surface tracking, insulation breakdown, and corrosion on SPD contact terminals.
• Engineering Solution: Specify IP65/IP67 rated enclosures, SPDs with anti-corrosion plated terminals, and integrated remote status contacts (SD) to instantly alert facility managers when a module disconnector trips following severe monsoon thunderstorm strikes.

---

Practical Sizing and Installation Tips for Engineers and EPCs

1. Enforce the 0.5-Meter Rule: Keep the total length of connecting conductors (line + ground) to the SPD under 0.5 meters. Every meter of lead adds roughly 1 kV of inductive peak voltage during fast lightning transients.

2. Coordinate Upstream Overcurrent Protection: Select backup fuses or circuit breakers according to manufacturer coordination tables to ensure full short-circuit withstand capability ($I_{SCCR}$) without nuisance tripping during normal lightning discharges.

3. Ensure Equipotential Bonding: All ground lines from SPDs, metallic conduits, structural steel, and primary grounding grids must bond to a single equipotential busbar to eliminate ground potential risers.

4. Incorporate Remote Monitoring: In unmanned solar farms or remote telecommunication sites, choose SPDs equipped with floating auxiliary contacts to feed real-time status updates directly to SCADA or building management systems (BMS).

---
