Low Voltage Surge Protection Devices
Surge Protection Devices (SPDs) manufactured by Protec Power Solutions Inc. for all DC to 600 VAC class power distribution systems, measurement and control, instrumentation, communications and information technology. We exceed the industry standards for quality, performance and customer satisfaction and are devoted to continually innovating new products.

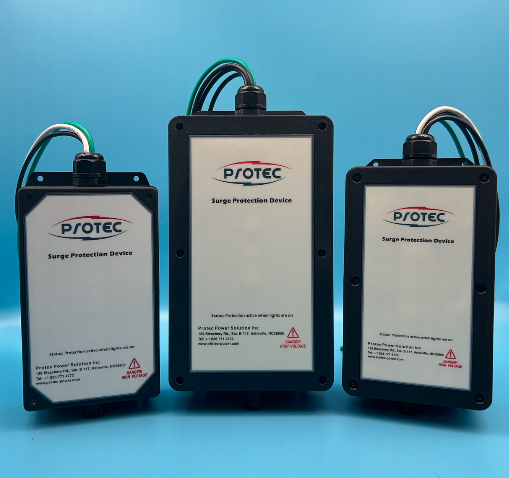

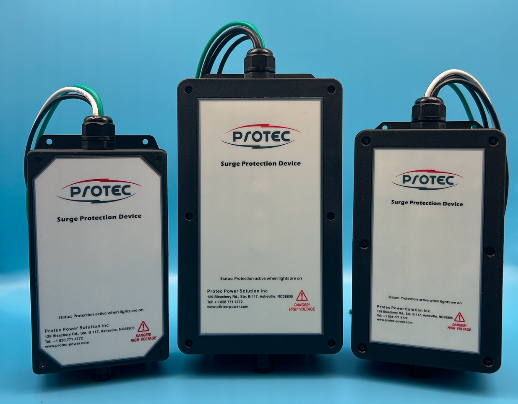

ProH Series SPD
Protec ProH Series Surge Protection Devices utilize High Frequency with Controlled Voltage Tracking Circuitry (HFTC) and are designed for ac power line protection against frequency, voltage and current transients.
• Frequency & controlled Voltage Tracking Circuitry (HFTC)
• Individually fused multichannel suppression modules
• Available in 30, 60, 90, 150, 200, 240, 300, 400 & 450 kA per phase peak Surge Current Rating (SCR)
• Voltage protection level (VPR) below 1.2 kV per mode
• 200kA short circuit current rating (SCCR)
• Lifetime cycle more than 45impulses of 10kA per phase
• Integrated All Mode Protection
• NEMA4X/IP56 Enclosure
• Fire proof silicon high temperature connection cables
• Integrated Thermal & Over-current fusing
• Anti-shock, anti-vibration thermal encapsulation in high strength dielectric compound

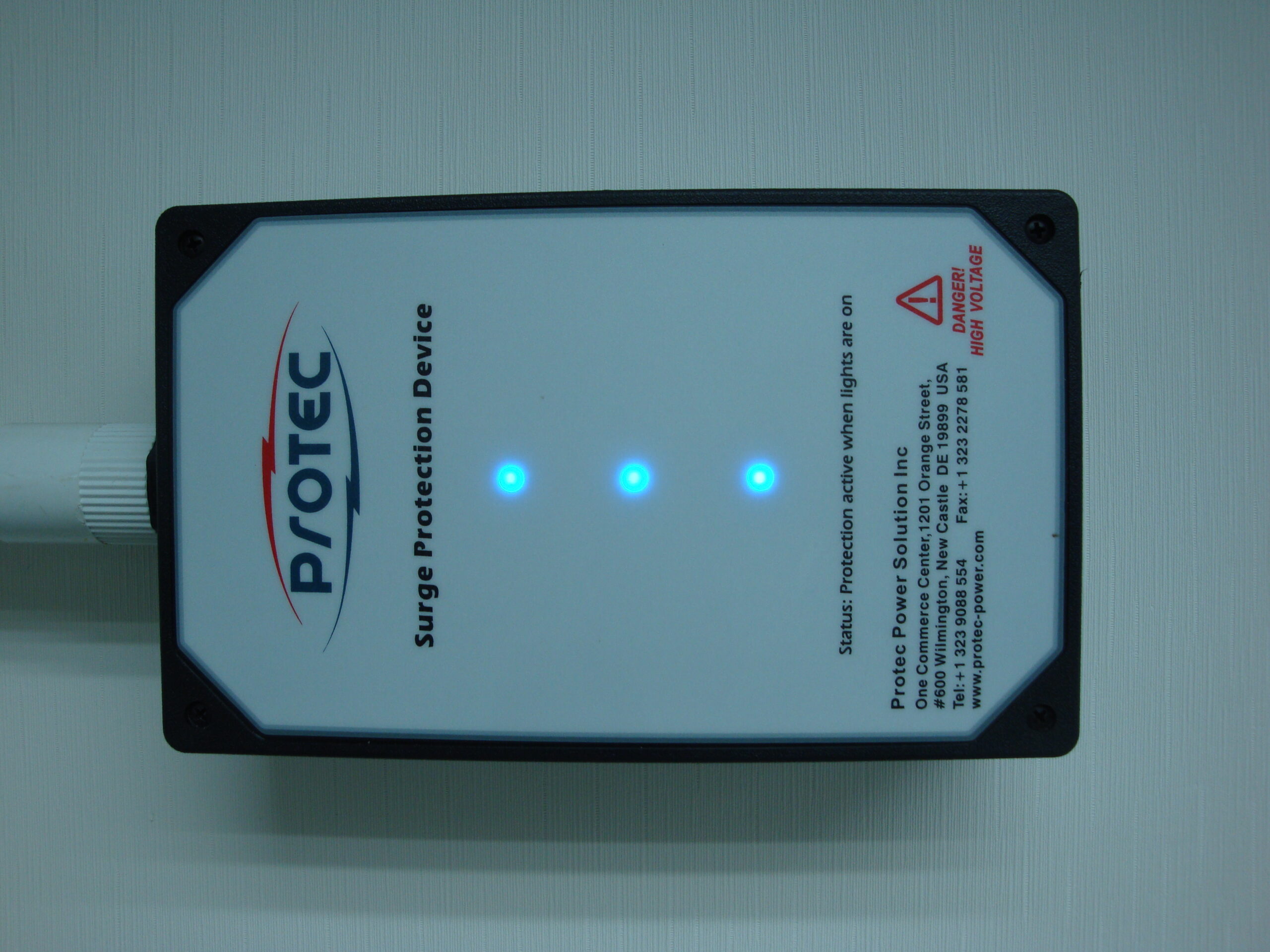

• Integrated Blue LED per phase monitoring
• 25 Year Free Replacement Warranty
• Tested to IEC 61643-11 & UL 1449 3rd edition recommendations
• UL1283 noise filter
Specialized Features
Why you should choose us in SPD?

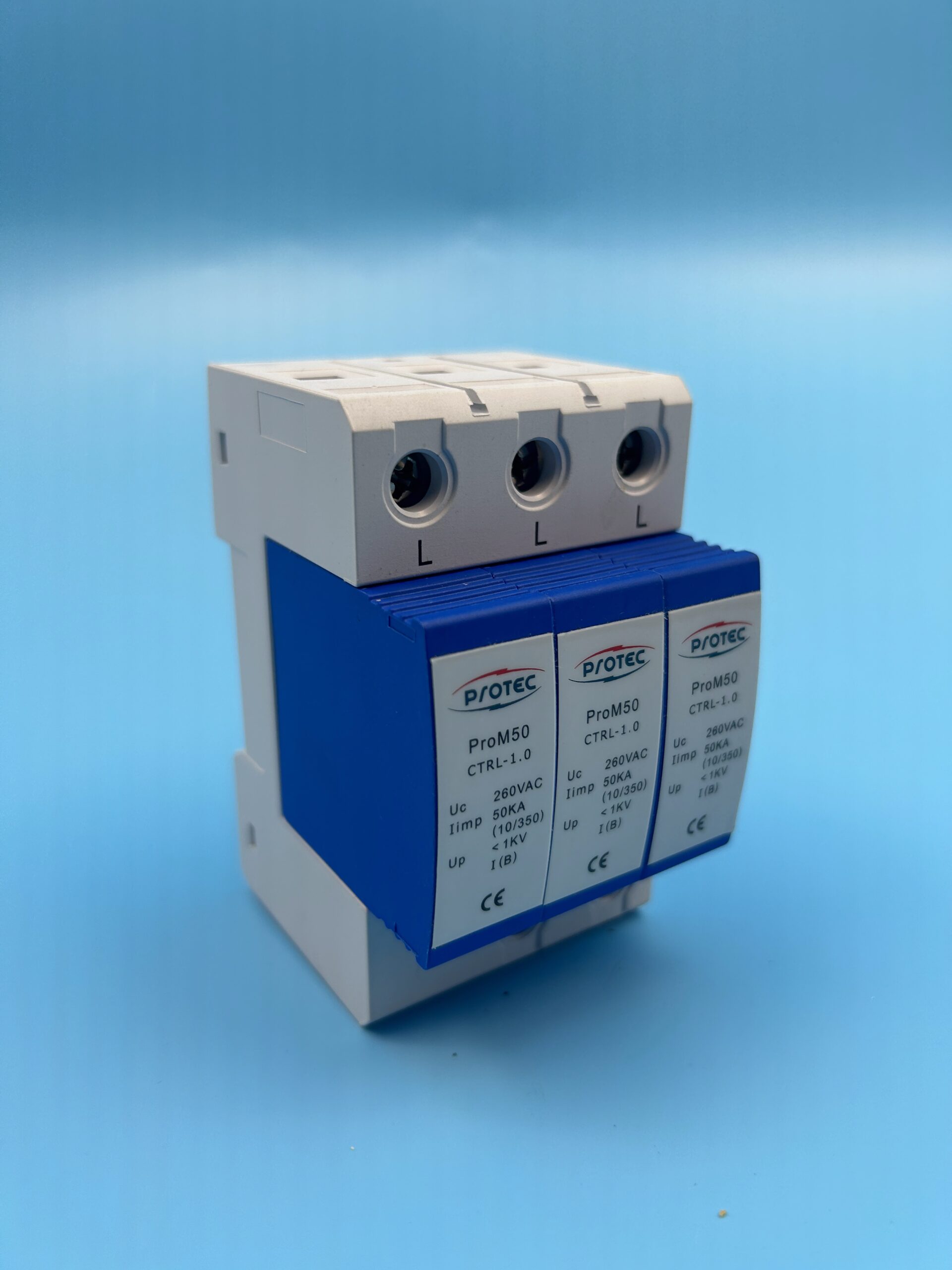

ProM Class-I Series
ProM Class I Series: Trigerred Spark Gap Lightning Protection Surge Protection Device.
• Single Phase – 2P
• Three Phase – 3P
• Electronic Trigger
• High Energy Discharge
• Low voltage protection level
• Little follow current
Application & Installation

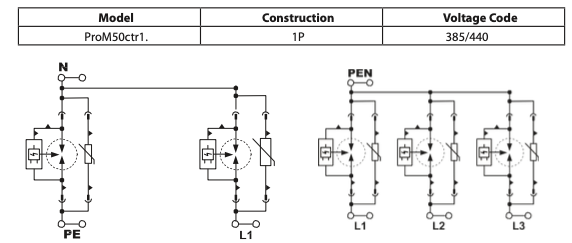

ProM50 ctrl 1.0 Encapsulated and Triggered Lightning protection device is a 1 pole, high energy voltage switching type surge protective devices. It has a compact structure, high discharge capability, low voltage protection rating, quick response time and low follow current. The lightning protector is used as Class I ( B ) SPD, that is directly connected in parallel with Class II (C) SPD, without a decoupling coil. This results in a space saving, simplifying installation technology and optimizing complex wiring.
